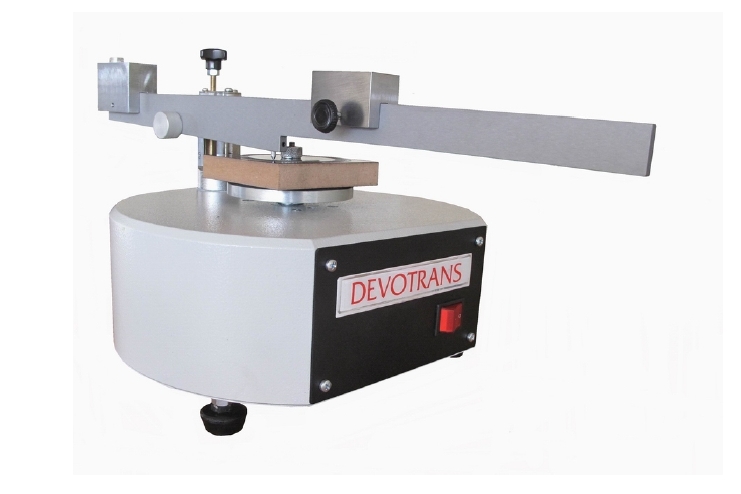

SCRATCH HARDNESS TEST DEVICE
DVT PCD

TECHNICAL INFORMATION
Load choices : 1 N or 10 N
Maximum sample dimensions (WxDxH) : 100x100x22 mm.
Power supply: 230 V/50 Hz.
Speed:  5 rpm ± 1
Scratching is measured under weight.
Weight setting

OPTIONAL ADD-ONS COMPLEMENTARY PRODUCTS
Magnifier
Water gauge
Diamond point
Millimetric setting unit

APPROXIMATE DIMENSIONS AND WEIGHT
Width: 32 cm.
Depth:  50 cm.
Height:  25 cm.
Weight:  7.5 Kg.

RELEVANT STANDARDS
EN 438-2
DIN 53799+B365
ISO 4586-2
DIN 55 350-18
TS EN 14688
